chromium oxide green (Cr₂O₃) grinding wheels hold a unique position in precision machining. Compared to diamond and silicon carbide abrasives, Cr₂O₃ wheels excel in specific applications due to their moderate hardness, excellent chemical stability, and cost advantages.
Performance Characteristics of Cr₂O₃ Grinding Wheels
Property Cr₂O₃ Wheel Comparative Advantage Mohs Hardness 8-8.5 Higher than common corundum, lower than diamond Self-Sharpening Excellent Abrasive grains fracture moderately, maintaining sharpness Chemical Stability Superior Inert to most materials thermal stability 1000°C+ Stable under dry grinding conditions Cost Moderate Significantly lower than diamond wheels
Primary Application Fields

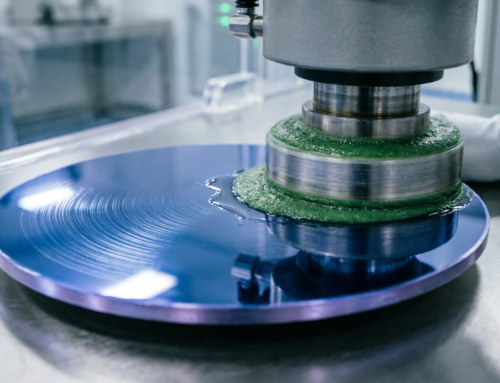

Optical Component Machining: Precision grinding and polishing of optical elements such as lenses, prisms, and optical windows. Cr₂O₃ wheels achieve optical-grade surface quality with no scratches or defects.
Precision Ceramic Machining: Grinding and polishing of precision ceramics including alumina, zirconia, and silicon nitride. Hardness matching ensures low-damage machining.
Carbide Tool Sharpening: Honing and polishing of carbide cutting tools, maintaining edge sharpness and precision.
Metal Mirror polishing: Mirror-finish polishing of premium metals including stainless steel, titanium alloys, and nickel-based superalloys.
Grinding Wheel Types and Selection
Wheel Type Binder Application Scenario Grinding Wheel Ceramic/Resin Cylindrical/Flat grinding Whetstone Ceramic Manual grinding, honing Grinding Paste Oil-based carrier Precision polishing, ultra-finishing polishing Pad Flexible substrate Curved surface polishing, fine polishing Gel Abrasive Gel matrix Hard-brittle materials (sapphire, SiC)
Gel Abrasives: Next-Generation Precision Machining Technology
Gel-forming technology represents a breakthrough in Cr₂O₃ wheel manufacturing:
- Uniform Dispersion: Gel matrix ensures highly dispersed Cr₂O₃ particles, preventing agglomeration
- Controllable Elasticity: Resin content adjusts wheel hardness and elasticity
- Optimized Self-Sharpening: Wheels maintain sharpness throughout use
- Superior Surface Quality: Achieves lower surface roughness and higher machining efficiency
VerdeChrome® Grinding Wheel Grade Products
We supply specialized Cr₂O₃ raw materials for wheel manufacturers:
- Standard Grade: 1-50μm particle size, general-purpose wheels
- Precision Grade: 0.5-5μm particle size, precision wheels
- Ultra-Fine Grade: <1μm particle size, polishing wheels
- High-Purity Grade: Cr₂O₃ ≥99.9%, premium applications
- Sintering Grade: Optimized sintering performance for ceramic-bonded wheels
Contact us for grinding wheel grade product specifications and technical support.
